HI-36~72K-TH-US-H
3 Phase · High Voltage
-
Three Phase
-
High Voltage
-
IP66 Protection
Technical Parameters

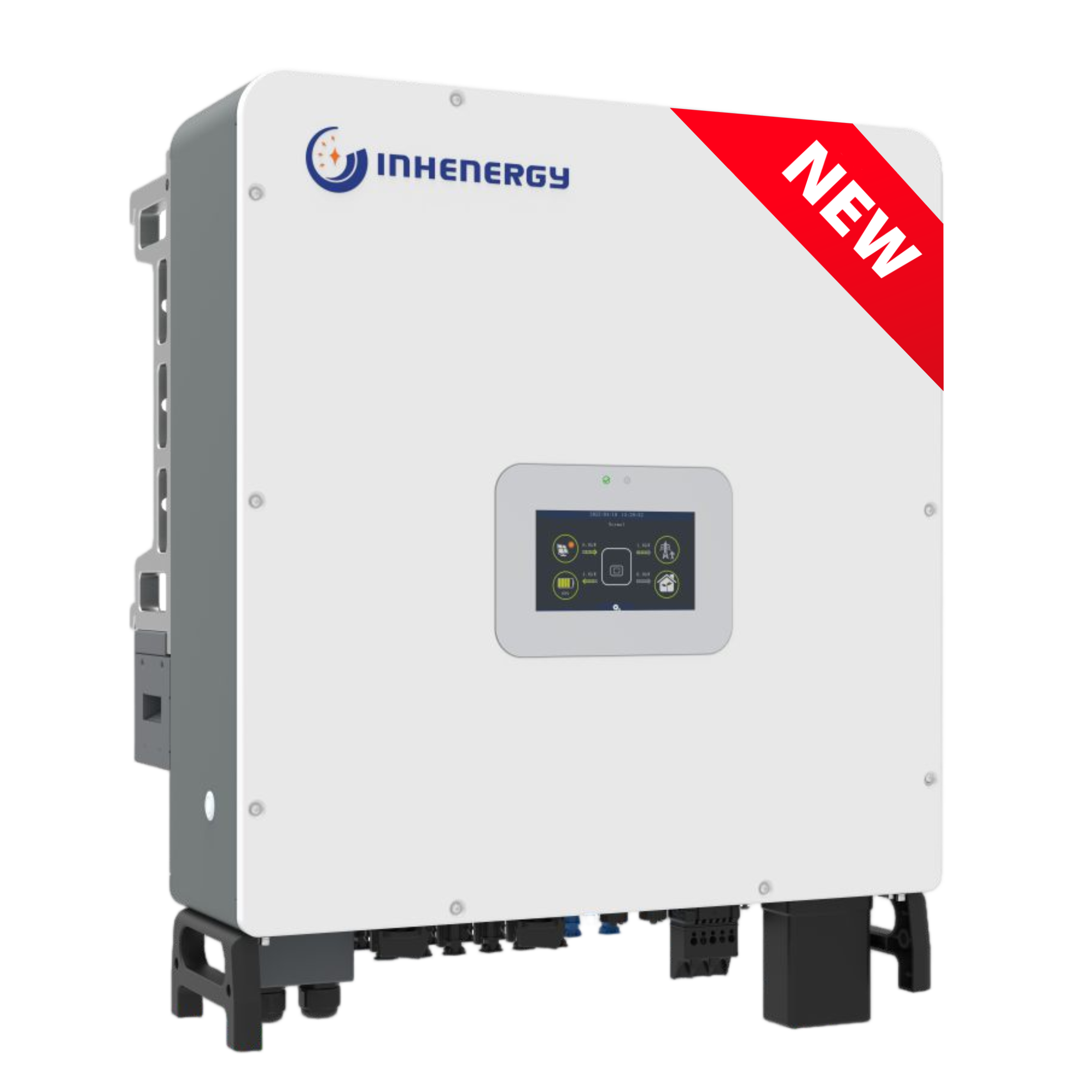

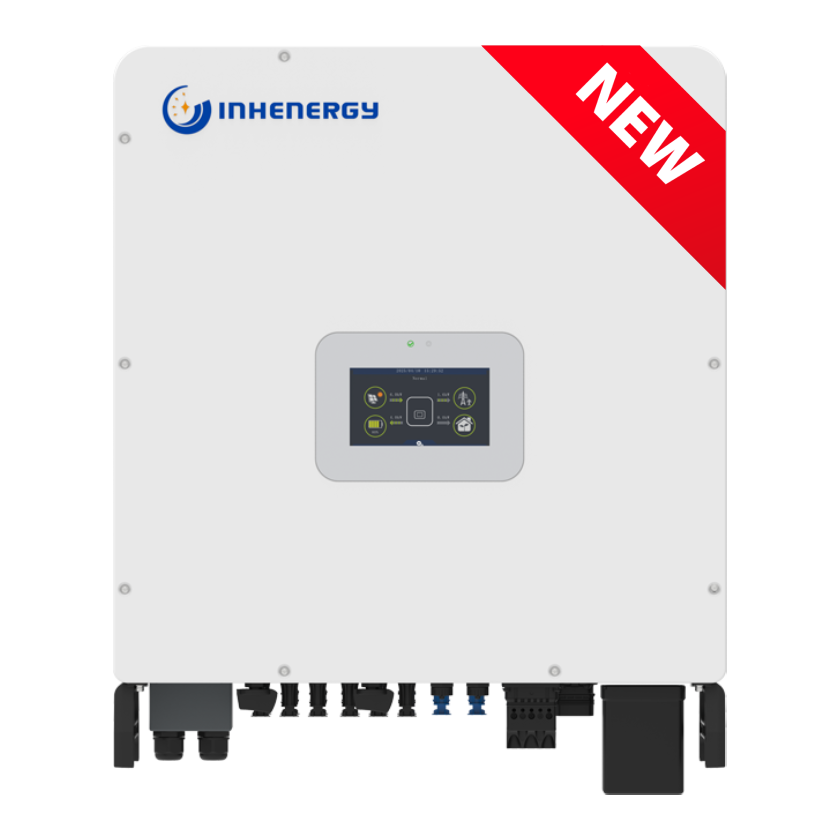

HI-36~72K-TH-US-H is a three-phase high-voltage hybrid inverter designed for mid-sized commercial & industrial projects, community storage, and large premium residential applications across the Americas. Independent grid export control per phase enables precise power allocation across three-phase grids, avoiding costly imbalance penalties. Supports a wide 180V-850V battery voltage range for high-voltage systems with improved efficiency. DC/AC coupling allows easy retrofitting of existing solar without rebuilding. Compatible with diesel generators for hybrid energy integration. Max PV input up to 144kW, covering 36kW, 48kW, 60kW, and 72kW power options. IP66-rated for reliable outdoor performance in the Americas' diverse climates — from heat and rain to snow and dust. Delivers demand charge reduction, peak-valley arbitrage, and backup power at a reasonable investment.
-
Independent grid export control for each phase
-
Compatible with diesel generator energy storage
-
Smart Wi-Fi monitoring for real-time control
-
Wide battery voltage range: 180V – 850V
-
Colorful touch screen for easy operation
-
DC & AC coupling to retrofit existing solar systems
