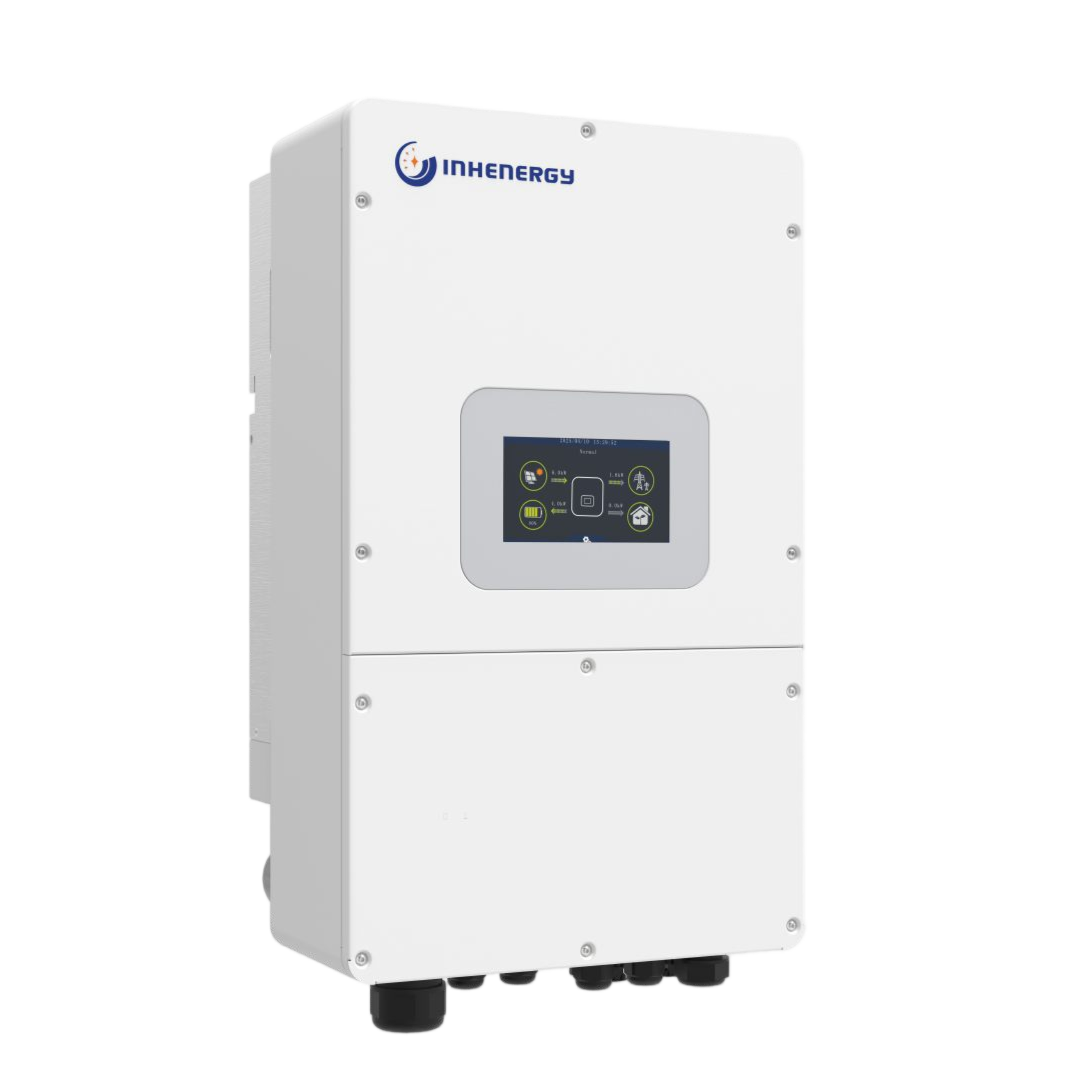

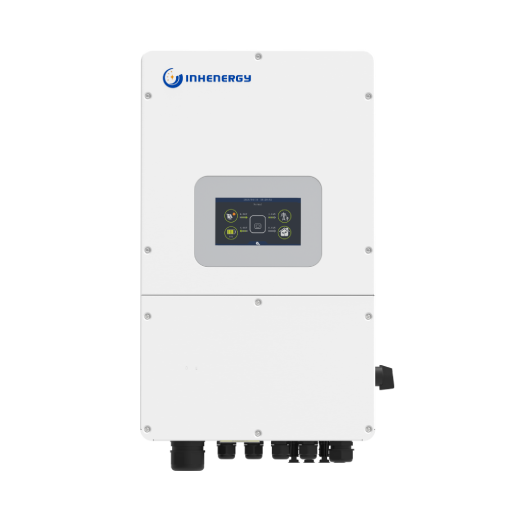

HI-5~12K-TL-US
3 Phase · Low Voltage
-
Three Phase
-
Low Voltage
-
IP66 Protection

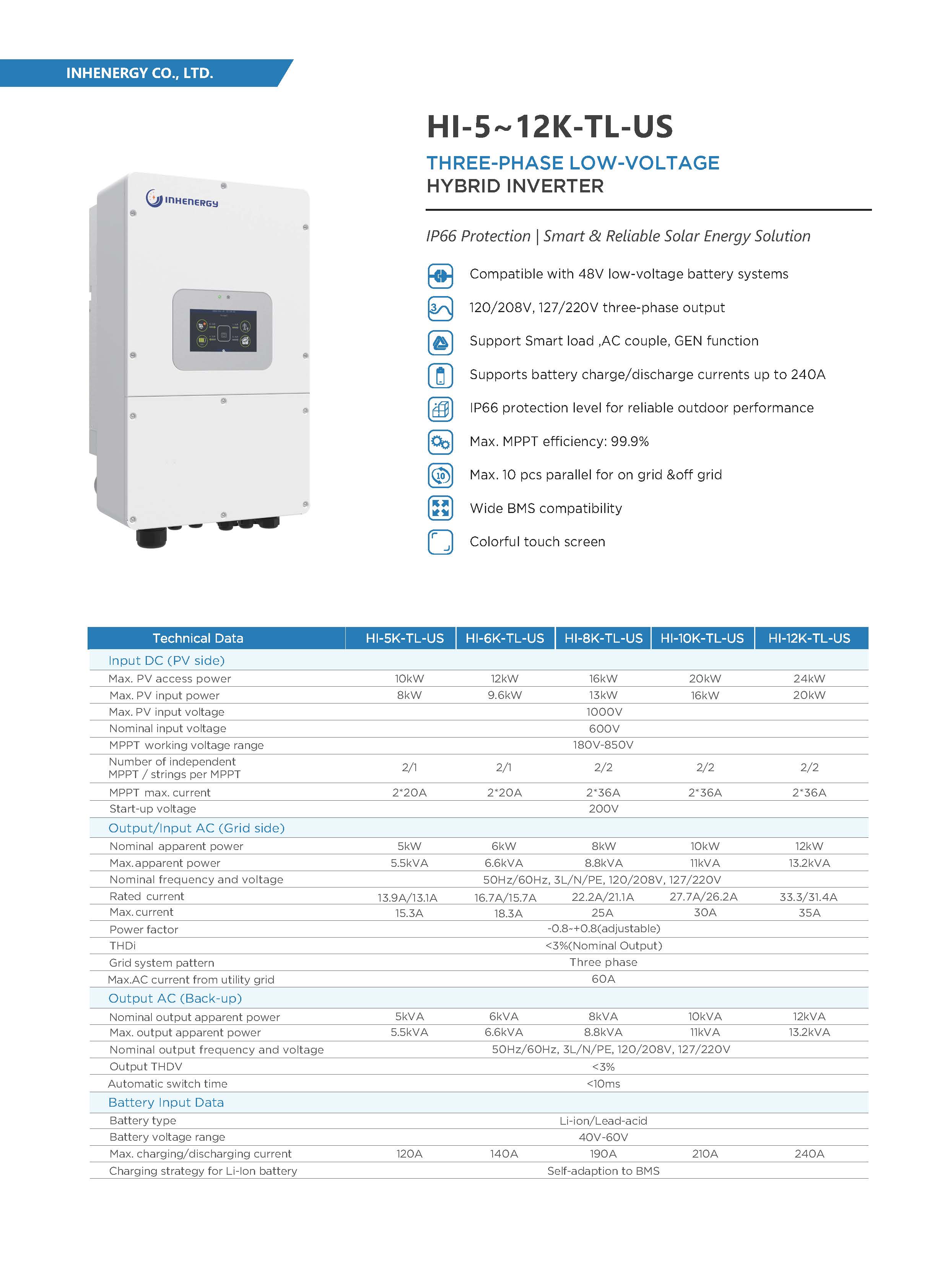

Technical Parameters
Three-phase low-voltage hybrid inverter for the Americas, RETIE certified for Colombia and Latin America. Designed for 120/208V and 127/220V three-phase grids. Key differentiator: supports 48V low-voltage battery systems with up to 240A charge/discharge current — ideal for high-capacity battery banks in commercial or large residential applications. Features smart load management, AC coupling, GEN function, and 99.9% MPPT efficiency. IP66 outdoor-rated, up to 10 units parallel. Three-phase storage, compliant and powerful.
-
Max. MPPT efficiency: 99.9%
-
120/208V, 127/220V three-phase output
-
Support Smart load, AC couple, GEN function
-
Compatible with 48V low-voltage battery systems
-
Colorful touch screen
-
Supports battery charge/discharge currents up to 240A
