HI-10~15K-TH-US
3 Phase · High Voltage
-
Three Phase
-
High Voltage
-
IP66 Protection

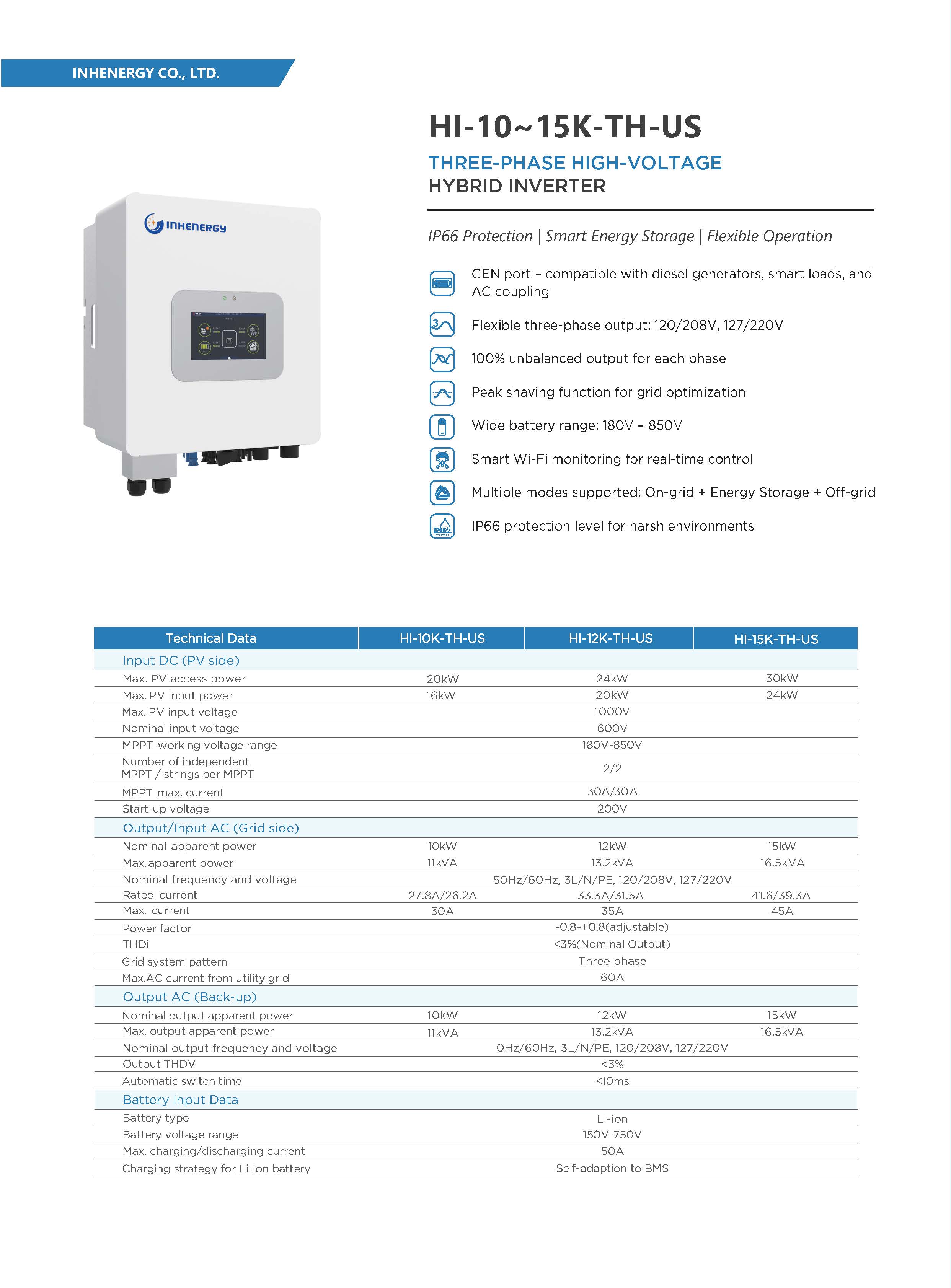

Technical Parameters

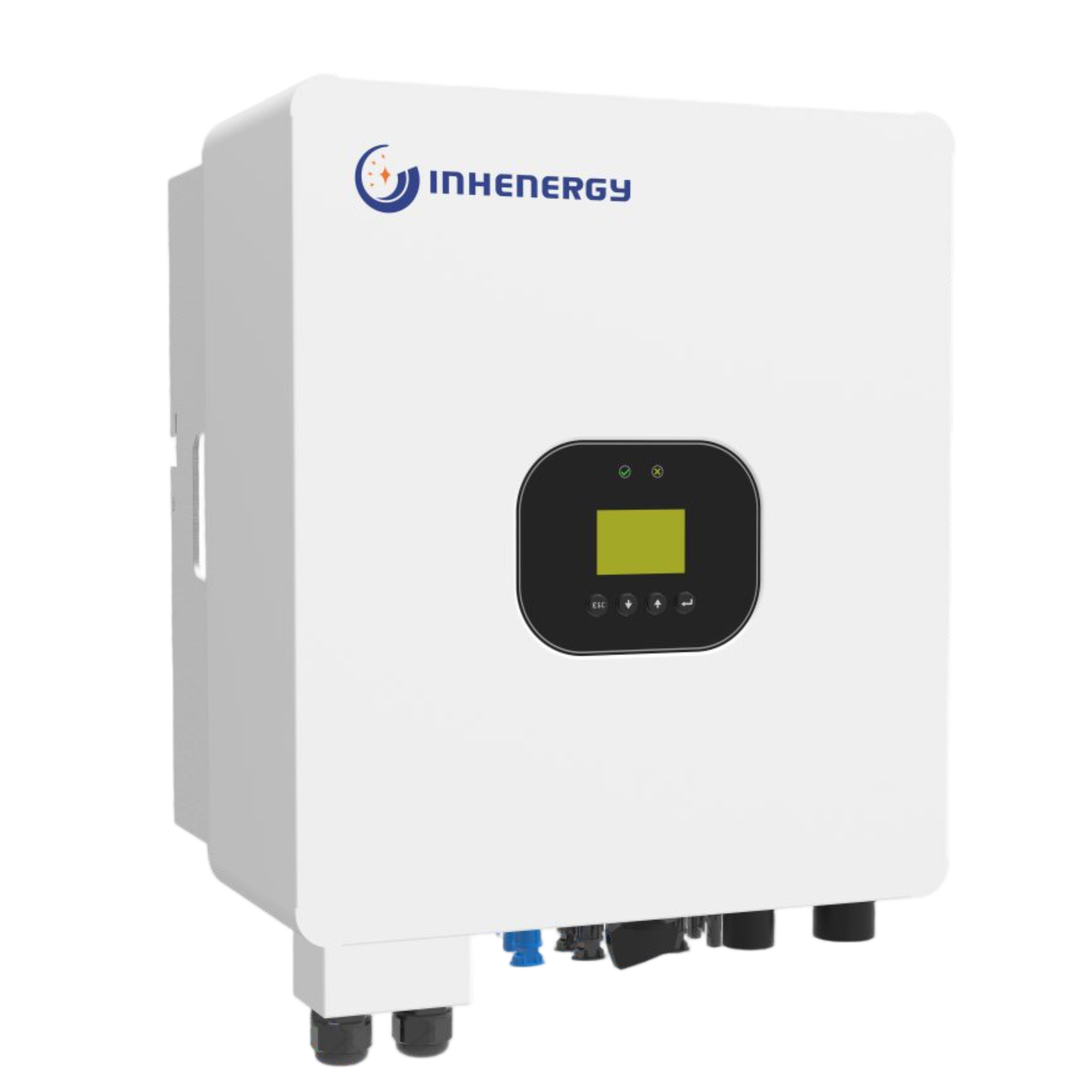

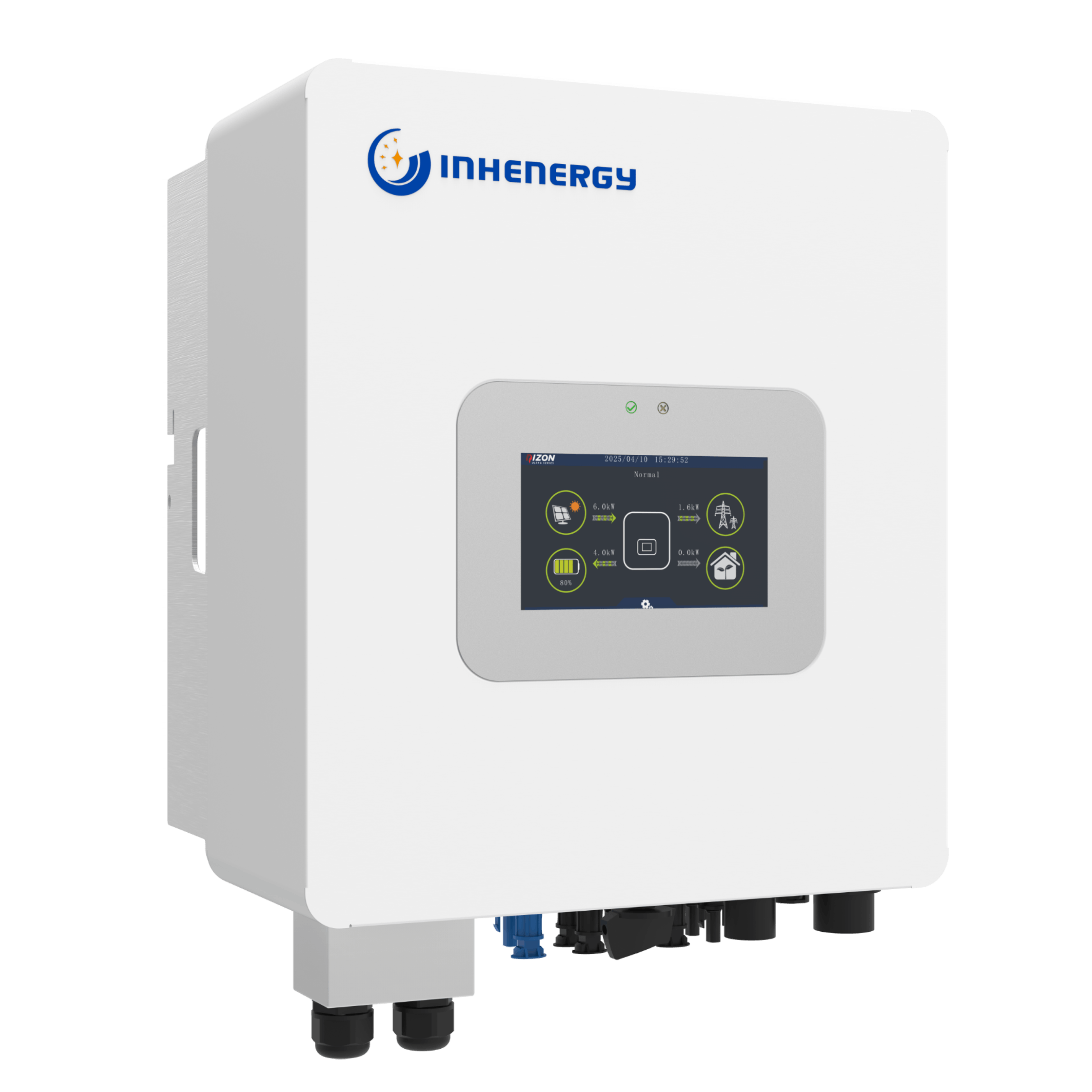

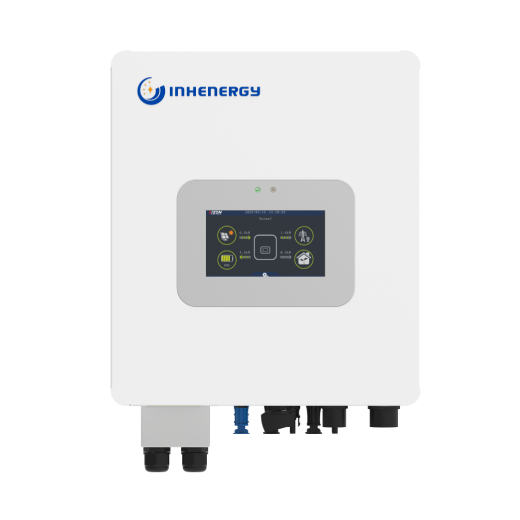

The HI-10~15K-TH-US is a US-standard three-phase high-voltage hybrid inverter, designed for North American commercial & industrial and large residential energy storage applications. Rated IP66 for reliable performance in harsh outdoor environments, it features a GEN port compatible with diesel generators, smart loads, and AC coupling systems. It supports flexible three-phase outputs (120/208V, 127/220V) and 100% unbalanced output per phase to meet complex power demands. With peak shaving for grid optimization, multiple modes including on-grid, energy storage, and off-grid, smart Wi-Fi monitoring, and a wide 180V-850V battery voltage range, it delivers a flexible and robust high-power smart energy storage solution for North American users.
-
Peak shaving function for grid optimization
-
100% unbalanced output for each phase
-
Flexible three-phase output: 120/208V, 127/220V
-
Wide battery range: 180V – 850V
-
Multiple modes supported: On-grid + Energy Storage + Off-grid
-
GEN port – compatible with diesel generators, smart loads, and AC coupling
