Batteries

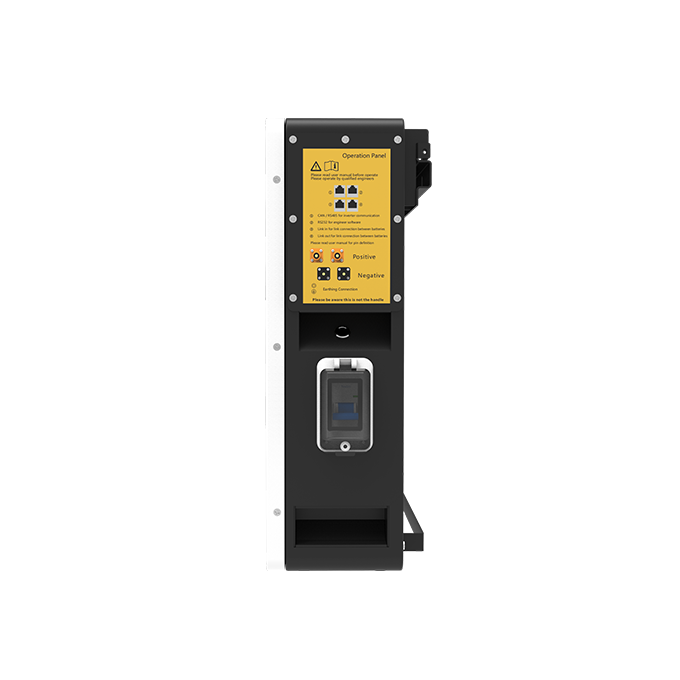

Wall Mounted LiFePO4 Battery

  • 5.12 kWh
  • Low Voltage

Technical Parameters

Inhenergy's Wall Mounted LiFePO4 Battery is designed for residential hybrid inverters, offering a capacity of 5.12 kWh, with up to 8 parallel connections allowing for a maximum capacity of 40 kWh. It is easy to install and maintain with simple plug-and-play wiring, offering you a stable energy storage solution.

  • dianchi-248.png

    High safety LiFePO4 battery

  • chanpinxiangqingyeyoushisuijitubiao.png

    Wall mounted

  • shineidianchi-805.png

    Plug and play

  • fanghu-77.png

    Long cycle life and superior performance

  • dadianchi-193.png

    Battery management system

  • thumb1911-671.png

    Compatible with multiple brands of mainstream inverter use

  • 65-567.png

    IP65 protection level

Technical Data
Technical DataLB-5110O-W
Nominal Voltage51.2V
Rated Capacity10OAh
Energy512OWh
Charging Cut-off Voltage56.16V
Discharge Cut-off Voltage45.6V
Recommend charge/discharge current50A
Maximum continuous charge/discharge current100A
Instantaneous discharge current200A/1S
Charge temperatureO~55℃
Discharge temperature-20~60℃
Storage Environment(50%state of charge)20℃~45℃ in three months;25±3℃ over three months;Humidity:65±20%RH
EnvironmentIndoor
InstallationWall mounted
Cell TechnologyLithium iron phosphate(LiFePO4)
Life Cycle6000 times @80%DOD
CoolingNatural convection
Protection RatingIP65
CertificatesCB,IEC62619,UL1973,UKCA,CE-EMC,     GPSD,EN62619;UN38.3,MSDS
Dimension520*470*141.5mm
Rated Capacity100Ah
Battery Net Weight/Gross Weight48.45KG/54.15KG
CommunicationRS232,CAN,RS485
