Batteries

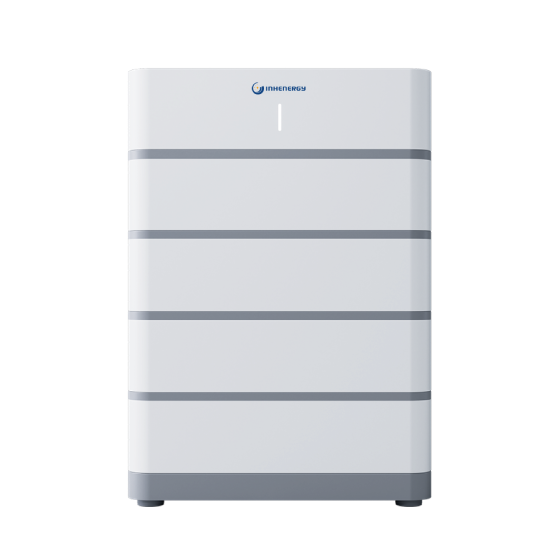

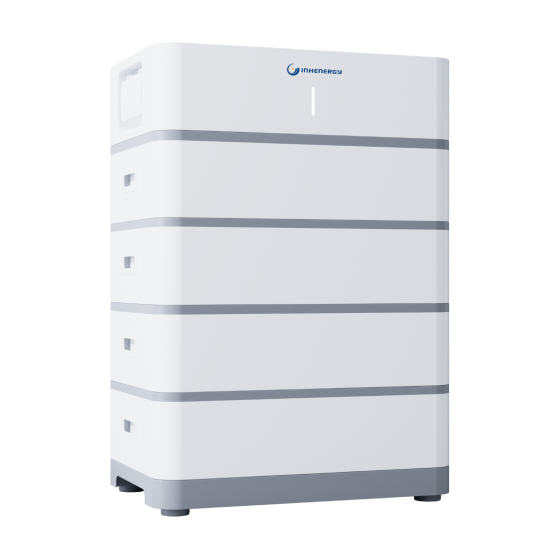

Stackable LiFePO4 Battery

  • 11.52~
    25.92kWh
  • High Voltage

Technical Parameters

INHENERGY's Stackable LiFePO4 Battery offers a wide capacity range, from 7.48 kWh to 19.96 kWh, to meet residential and commercial applications. The stackable design makes the system easy to install. The Stackable LiFePO4 Battery is safe, flexible, and smart, making it an ideal choice for storing solar energy.

  • dianchi-720.png

    High safety LiFePO4 battery

  • chanpinxiangqingyeyoushisuijitubiao.png

    Stackable installation for more energy

  • shineidianchi.png

    Plug and play

  • fanghu-213.png

    Long cycle life and superior performance

  • dadianchi-900.png

    Battery management system

  • thumb1911-322.png

    Compatible with multiple brands of mainstream inverter use

  • 65-740.png

    IP65 protection level

Technical Data
ModelsLB-50-S4LB-50-S5LB-50-S6LB-50-S7LB-50-S8LB-50-S9
Cell TypeLFPLFPLFPLFPLFPLFP
Nominal Energy11.52kWh14.40kWh17.28kWh20.16kWh23.04kWh25.92kWh
Number of Battery Modules456789
Nominal Capacity50Ah50Ah50Ah50Ah50Ah50Ah
Nominal Voltage230.4V288.0V345.6V403.2V460.8V518.4V
Operating Voltage Range201.6V-259.2V252.0V-324.0V302.4V-388.8V352.8V-453.6V403.2V-518.4V453.6V-583.2V
Charge Current/Max. Continuous50A50A50A50A50A50A
Discharge Current/Max. Continuous50A50A50A50A50A50A
Recommended Depth of Discharge80%80%80%80%80%80%
Operating Temp. Range/Charge0℃-50℃0℃-50℃0℃-50℃0℃-50℃0℃-50℃0℃-50℃
Operating Temp. Range/Discharge-20℃-55℃-20℃-55℃-20℃-55℃-20℃-55℃-20℃-55℃-20℃-55℃
Dimensions (W/H/D)570/819/367mm570/969/367mm570/1119/367mm570/1269/367mm570/1419/367mm570/1569/367mm
Weight139kg165kg191kg217kg243kg269kg
IP RatingIP20IP20IP20IP20IP20IP20
ExpansionMax. 6 groups in parallel operationMax. 6 groups in parallel operationMax. 6 groups in parallel operationMax. 6 groups in parallel operationMax. 6 groups in parallel operationMax. 6 groups in parallel operation
CommunicationCAN/WIFICAN/WIFICAN/WIFICAN/WIFICAN/WIFICAN/WIFI
Cooling ModeNatural coolingNatural coolingNatural coolingNatural coolingNatural coolingNatural cooling
DisplayWIFI/Bluetooth APP+Light stripWIFI/Bluetooth APP+Light stripWIFI/Bluetooth APP+Light stripWIFI/Bluetooth APP+Light stripWIFI/Bluetooth APP+Light stripWIFI/Bluetooth APP+Light strip
Cycles6000@80% DOD, 25℃6000@80% DOD, 25℃6000@80% DOD, 25℃6000@80% DOD, 25℃6000@80% DOD, 25℃6000@80% DOD, 25℃
Design Life15+ years15+ years15+ years15+ years15+ years15+ years
InstallationFloor MountedFloor MountedFloor MountedFloor MountedFloor MountedFloor Mounted
EnvironmentIndoorIndoorIndoorIndoorIndoorIndoor
Allowed Humidity Range≤95% RH≤95% RH≤95% RH≤95% RH≤95% RH≤95% RH
Design StandardUN38.3, IEC 62619, CE-EMCUN38.3, IEC 62619, CE-EMCUN38.3, IEC 62619, CE-EMCUN38.3, IEC 62619, CE-EMCUN38.3, IEC 62619, CE-EMCUN38.3, IEC 62619, CE-EMC
