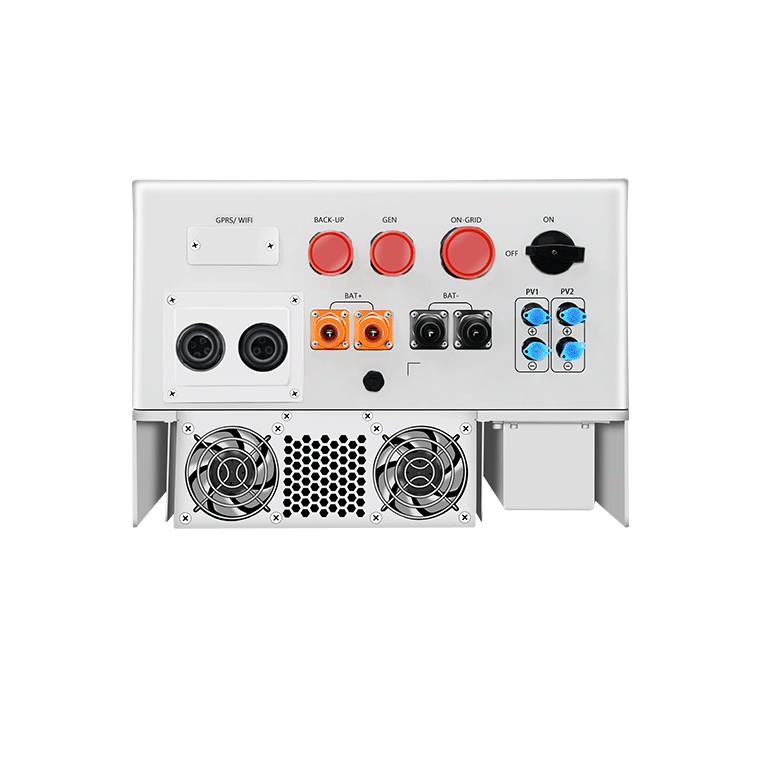

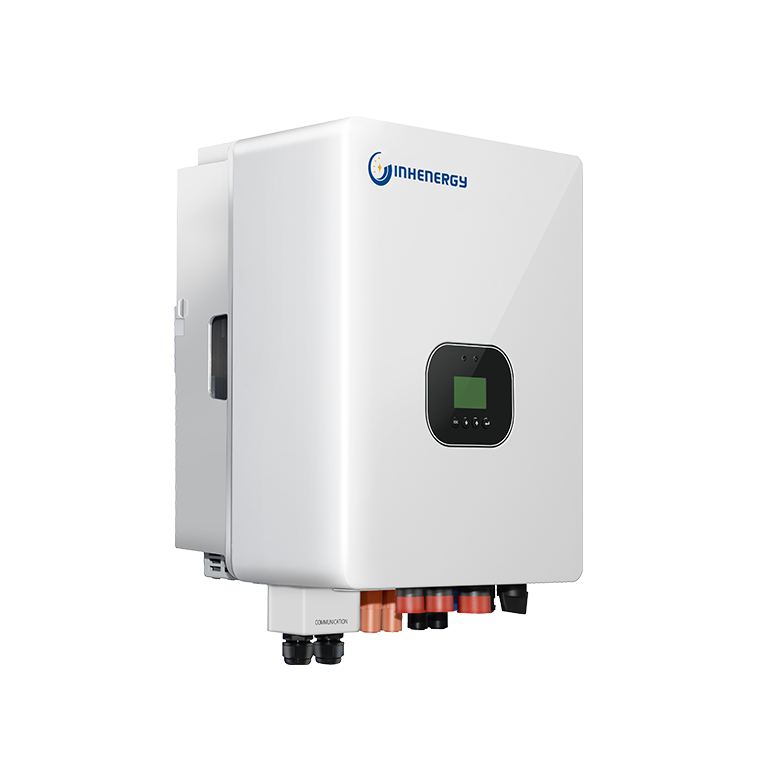

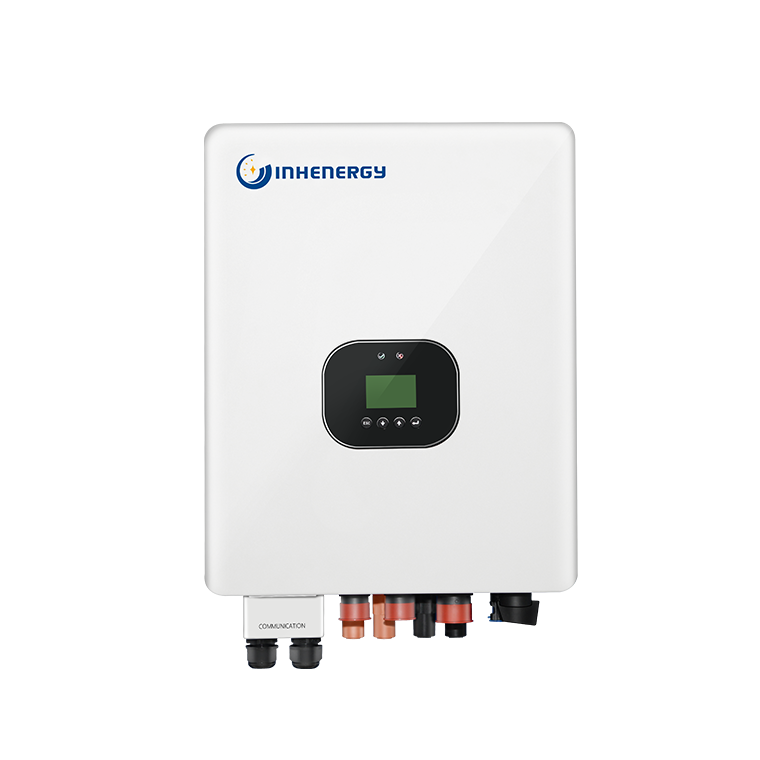

Technical Data | HI-5K-TL | HI-6K-TL | HI-8K-TL | HI-10K-TL | HI-12K-TL |
PV String Input Data |
|
|
|
|
|
Max. DC input power | 7500W | 9000W | 12000W | 15000W | 18000W |
Max. DC input voltage |
|
| 1100V |
|
|
Nominal input voltage |
|
| 600V |
|
|
MPPT working voltage range |
|
| 180V-1000V |
|
|
Number of independent MPPT / strings per MPPT |
|
| 2/1+1 |
|
|
MPPT max. current |
|
| 20A/20A |
|
|
Start-up voltage/Min.operating voltage |
|
| 200V/180V |
|
|
AC Output/Input Data (On-grid) |
|
|
|
|
|
Nominal output apparent power | 5000W | 6000W | 8000W | 10000W | 12000W |
Max. output apparent power | 5500VA | 6600VA | 8800VA | 11000VA | 13200VA |
Nominal output voltage |
|
| 400V±20% |
|
|
Nominal ouput freqency |
|
| 50Hz,60Hz/±5Hz |
|
|
Max. output current | 8A | 10A | 13A | 16A | 19A |
Power factor |
|
| -0.8~+0.8(adjustable) |
|
|
THDi |
|
| <3%(Nominal Output) |
|
|
Grid system pattern |
|
| 3L+N+PE |
|
|
Max.apparent power from utility grid | 11000VA | 12000VA | 16000VA | 20000VA | 24000VA |
Max.AC current from utility grid | 16A | 20A | 26A | 32A | 40A |
Back-up Output Data (UPS) |
|
|
|
|
|
Peak output apparent power | 5500VA,10s | 6600VA,10s | 8800VA,10s | 11000VA,10s | 13200VA,10s |
Nominal output apparent power | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
Nominal output voltage |
|
| 400V±20% |
|
|
Nominal ouput frequency |
|
| 50Hz/60Hz |
|
|
Output THDV |
|
| <3% |
|
|
Automatic switch time |
|
| <20ms |
|
|
Battery Input Data |
|
|
|
|
|
Battery type |
|
| Li-Ion/ Lead-acid |
|
|
Battery voltage range |
|
| 42V-59V |
|
|
Max. charging/discharging current | 100A | 120A | 160A | 200A | 240A |
Battery capacity(AH) |
|
| 50-2000 |
|
|
Charging strategy for Li-Ion battery |
|
| Self-adaption to BMS |
|
|
Charging strategy for Lead-acid Battery |
|
| Three-stage |
|
|
Efficiency |
|
|
|
|
|
Max. effificiency | 98% | 98% | 98% | 98% | 98% |
Europe effificiency | 97.5% | 97.5% | 97.5% | 97.5% | 97.5% |
Max. battery to load effificiency | 98% | 98% | 98% | 98% | 98% |
Protection |
|
|
|
|
|
Anti islanding protection |
|
| Yes |
|
|
Insulation impedance protection |
|
| Yes |
|
|
RCD detection |
|
| Yes |
|
|
PV reverse polarity protection |
|
| Yes |
|
|
Output over voltage protection |
|
| Yes |
|
|
Output over current protection |
|
| Yes |
|
|
General Data |
|
|
|
|
|
Dimensions(W/L/H)in mm |
|
| 403/465/285 |
|
|
Weight |
|
| 25kg |
|
|
Operation temperature range |
|
| -25℃~+60℃ |
|
|
Heat dissipation mode |
|
| Smart cooling |
|
|
IP Class |
|
| IP 65 |
|
|
Maximum altitude |
|
| 4000m |
|
|
Self-Consumption night |
|
| <3w |
|
|
Topology |
|
| Transformerless |
|
|
Features |
|
|
|
|
|
LCD display |
|
| Yes |
|
|
Communication interface |
|
| WiFi/4G/USB/CAN/RS485 |
|
|
Standards |
|
| EN 62109-1/EN 62109-2/EN 62477-1/IEC 61000-6-1/IEC 61000-6-3/ UNE 217001/UNE 217002/VDE 0126/IEC 61727/IEC 62116/EN 50549-1/G98/ G99 |
|
|
